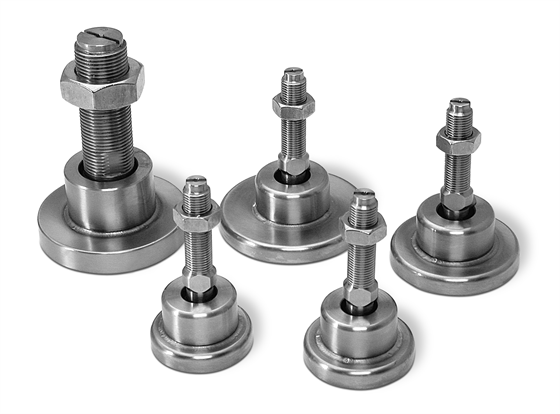

RICE LAKE Leveling Pads
- Replacement feet, adapt to most floor scales
- Available in cadmium-plated steel or stainless steel
- Simple swivel design
- Use with single-ended shear beams or bending beams to provide a large, flat load introduction surface
| Part # | Thread Size | Height | Diameter |
|---|---|---|---|
| Part #Used in conjunction with leveling pad stems | |||
| Part #Mild Steel | |||
| Part #18817 | Thread Size1/2-13 UNC | Height1.12 in | Diameter1.87 in |
| Part #18820 | Thread Size3/4-10 UNC | Height1.50 in | Diameter3.00 in |
| Part #Stainless Steel | |||
| Part #18818 | Thread Size1/2-13 UNC | Height1.12 in | Diameter1.87 in |
| Part #18833 | Thread Size3/4-10 UNC | Height1.50 in | Diameter3.00 in |
