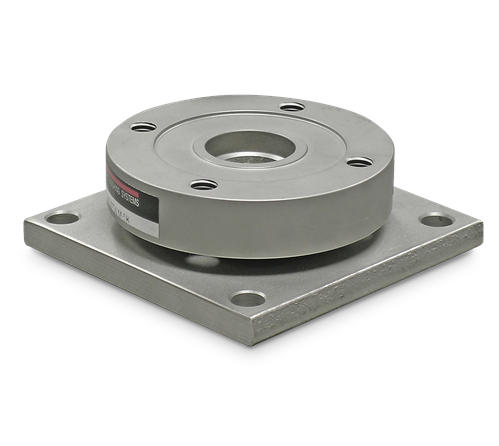

RL9000TWM Series Weigh Module Kit (Load Cells)
Complete Kit Includes
- Three or four stainless steel mounting assemblies with RL9000TWM compression disk load cells
- One JB4SS NEMA Type 4X stainless steel signal trim junction box
- 25 ft of hostile environment EL147HE SURVIVOR® load cell cable
Standard Features
- Capacities (per module): 1,000 to 450,000 lb
- Stainless steel construction
- Mild steel base plates (stainless steel available on some capacities)
- Low-profile design
- Self-centering
- Self-checking assembly
- Offers 100% sideload, 100% uplift and 150% static safe load and 300% ultimate static overload protection
- Weighs accurately with up to 3° non-parallel load
Applications
- Tank, hopper or vessel weighing
High-precision Stainless Steel Weigh Module
The RL9000TWM Series stainless steel weigh module is ideal for use in tank, hopper, vessel and many other applications. The low-profile design offers an economical solutions in a competitive marketplace. This rugged, high-precision mount is designed for easy installation and does not require check rods or other stabilizing hardware. The stainless steel construction and welded seal offer additional protection in washdown areas.
RL9000TWM Series Specifications
| Full Scale Output: 3.0 (± 0.1%) mV/VBridge Resistance: 350 ohm Material/Finish: Temperature: Seal Type: Safe Overload: |
Rated Excitation: 5 to 10 VDCNonlinearity: 1,000 to 100,000 lb: 0.05% FS 150,000 to 450,000 lb: 0.1% FS Insulation Resistance: Non-repeatability: Cable Length: |
Deflection at Capacity: 1.000 to 15,000 lb: 0.002 in 20,000 to 50,000 lb: 0.004 in 60,000 to 200,000 lb: 0.007 in 250,000 to 450,000 lb: 0.009 inCable Color Code: Green +Excitation Black –Excitation White +Signal Red –Signal Warranty: |

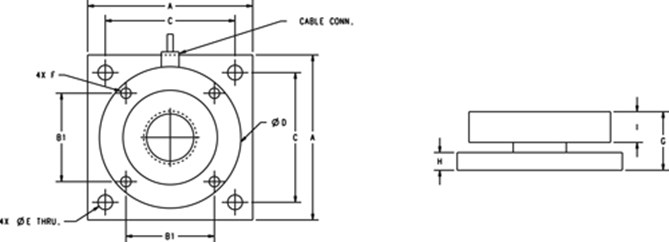

RL9000TWM Series 1,000 to 100,000 lb Dimensions
| Rated Capacity | A | B1 | C | D | E | F | G | H | I | Conduit Adapter |
|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||||
| 1,000 to 10,000 | 4.00 | 2.00 | 3.25 | 3.50 | 0.40 | 3/8-16 UNC | 1.35 | 0.375 | 0.75 | – |
| 15,000 | 4.00 | 2.00 | 3.25 | 3.50 | 0.40 | 3/8-16 UNC | 1.60 | 0.625 | 0.75 | – |
| 20,000 to 50,000 | 7.00 | 3.75 | 5.50 | 6.00 | 0.63 | 1/2-13 UNC | 2.48 | 0.75 | 1.30 | 1/2-14 NPT |
| 60,000 to 100,000 | 8.00 | 4.25 | 6.50 | 7.00 | 0.81 | 3/4-16 UNC | 2.50 | 1.00 | 1.30 | 1/2-14 NPT |

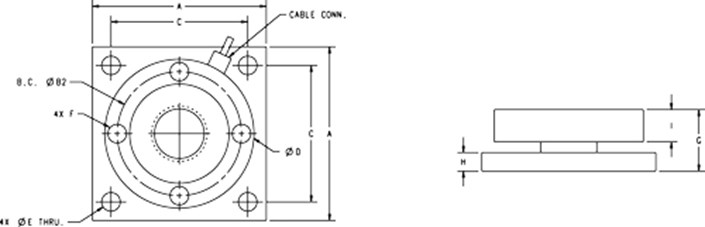

RL9000TWM Series 150,000 to 200,000 lb Dimensions
| Rated Capacity | A | B1 | C | D | E | F | G | H | I | Conduit Adapter |
|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||||
| 150,000 to 200,000 | 10.0 | 7.825 | 8.00 | 9.00 | 1.10 | 1-14 UNF | 4.75 | 2.00 | 1.70 | 1/2-14 NPT |

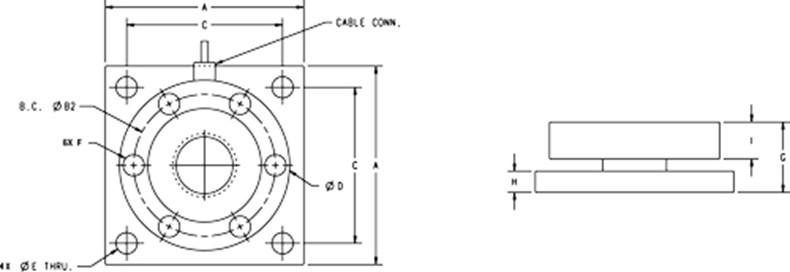

RL9000TWM Series 250,000 to 450,000 lb Dimensions
| Rated Capacity | A | B1 | C | D | E | F | G | H | I | Conduit Adapter |
|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||||
| 250,000 to 450,000 | 11.00 | 7.75 | 9.00 | 9.00 | 1.30 | 7/8-14 UNF | 6.42 | 3.00 | 2.25 | 1/2-14 NPT |

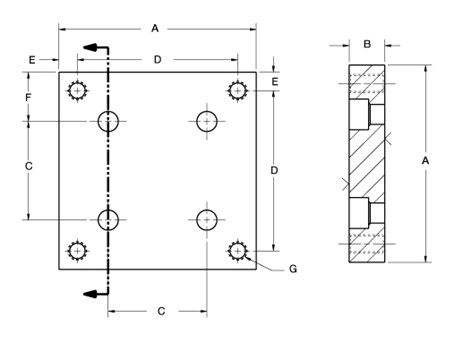

RL9000TWM Series Optional Top Plate Dimensions
| Rated Capacity | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| lb/inches | |||||||
| 1,000 to 15,000 | 4.00 | 0.72 | 2.00 | 3.25 | 0.38 | 1.00 | 3/8-16 UNC |
| 20,000 to 50,000 | 7.00 | 0.97 | 3.75 | 5.50 | 0.75 | 1.62 | 5/8-11 UNC |
| 60,000 to 100,000 | 8.00 | 1.46 | 4.25 | 6.50 | 0.75 | 1.88 | 3/4-16 UNF |
| 150,000 to 200,000 | 10.00 | 1.94 | 5.53 | 8.00 | 1.00 | 2.25 | 1-14 UNS |
| 250,000 to 450,000 | 11.00 | 2.94 | 7.75 B.C. | 9.00 | 1.00 | 1.00 | 1-1/4-12 UNF |
